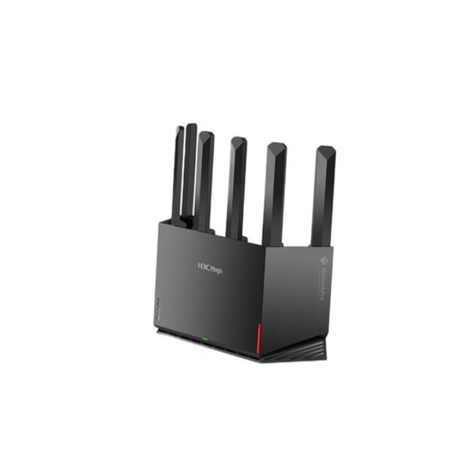

H3C Magic NX54 AX5400 Gigabit Dual Band Wi-Fi6 Broadband Router With Mesh

H3C Magic NX54
5400Mbps Dual-Band Gigabit Wi-Fi 6 Router

New Vertical Design
Qualcomm Professional Chip
Wi-Fi 6 5400Mbps
160Mhz Large Bandwidth

Overview
New Vertical design for better coverage - Signal field is fuller and coverage is increased by 20%
Qualcomm professional chip more stable operation - Independent NPU processing data Stable operation without dropping lines
5400Mbps Super Fast Wi-Fi -Four channels of new architecture double the speed of 5G
160MHz wider bandwidth - Larger bandwidth 1X faster
4K QAM more efficient transmission - Advanced transmission technology 20% faster
6 signal amplifiers - 5dB signal enhancement for more stable long-distance communication
EasyMesh for easier networking - Easy connection Whole house coverage

H3C Magic NX54 Features a New Vertical Design
Fuller Signal Field and 20% More Coverage
New Vertical design - Better wireless signal and wider coverage
180 "I" design - Fuller signal field strength and more stable transmission performance
Anti-obscuring design - Hard to block the device, better signal
Golden ratio - Less antenna interference More beautiful appearance of the equipment
Reasonable layout - Reasonable antenna design Balanced wireless coverage
Stereoscopic heat dissipation - Improve heat dissipation efficiency to ensure stable operation
Rotatable antenna - Easy rotation of antenna for stronger signal
Trapezoidal base - More stable placement, More minimalist appearance
Invisible storage - Get rid of the clutter trouble Home wiring easier

New Vertical Design
Better wireless signal, wider coverage area
Signal field strength fullness Coverage area

The signal field strength is fuller and the transmission performance is more stable
Adopting "I" design, the antenna is creatively adjusted to 180 compared to the traditional 90 "L", which increases the distance between the antenna and the metal PCB board to reduce the possibility of signal attenuation and effectively improve the signal transmission efficiency, making The signal field strength is fuller and the transmission performance is more stable.

Enhanced heat dissipation efficiency - Adopt three-dimensional transparent heat dissipation design
Ensure stable operation - With large size heat sink
Reasonable design of antenna layout -More balanced wireless coverage
Antenna spacing adopts "1:0.618" golden ratio design

One-step solution to save effort
No need to adjust the angle of the antenna one wrench to the topTrapezoidal base
More stable placement More minimalist appearance. Invisible storage Get rid of the clutter trouble Home wiring easier

Qualcomm Dedicated Chip Runs more smoothly and stably
Equipped with Qualcomm dual-core 1GHz CPU + independent network acceleration engine NPU professional chip IPQ5018

Concurrent 12 threads, stronger processing power, smoother and more stable system operation

Anti-jamming - With Qualcomm WiFi6 chip anti-interference ability increased by 30%
Fast Speed - 10% faster data forwarding speed
Stable connection - Supports 640 terminals with low CPU usage

Stronger Signal
More Stable Long - Distance Communication
Equipped with 6 signal amplifiers, with industry excellent RF transmitting power and receiving sensitivity, with 11AX, making the router's signal more powerful Stronger, more stable long-distance communication. With a strong transceiver isolation mechanism and operating frequency filter characteristics, bringing strong anti-interference ability, no more fear of interference.

Independent network acceleration engine
Significantly improved processing efficiency
Equipped with a separate dedicated NPU data forwarding engine
Designed to handle network traffic
Allows CPU to focus more on upper layer applications
Faster processing speed when multiple applications are concurrently processed

5400M Wireless Rate experience the super high-speed rate
The whole machine concurrent rate is 3 times of the ordinary 1800M router wireless rate
5GHz wireless rate up to 4804Mbps
Twice the wireless rate of ordinary 3000M router

160Mhz Larger Bandwidth
Exponential increase in channel speed
5GHz supports larger 160MHz bandwidth
Nearly 1 times faster channel speed
Compatible with 20M/40M/80MHz bandwidth access at the same time

4K QAM Advanced Transmission Technology
20% more data transferred in the same time compared to 1024 QAM
Co-adaptation of terminals for 20% higher speed

True MU-MIMO
High-speed experience with multiple connections at multiple terminals
Only support 4-channel 4T4R architecture to allow multiple terminals to share multiple channels at the same time
Efficient transmission is required to maximize terminal Wi Fi performance

OFDMA Technology
Play with confidence for multiple devices
Supports sending upstream and downstream data for up to 37 devices in a single transmission
4.6 times better than similar products in the industry
Significantly lower latency
Improved transmission efficiency for multiple devices working simultaneously

EasyMesh Technology
Smart Connectivity for whole house coverage
Certified by Wi-Fi Alliance EasyMesh standard
Adapt to a variety of house types Whole-house Wi-Fi coverage
Freedom of movement without fear of dropping connections
Wi-Fi coverage of complex house types and large house types can be expanded through mesh networking

Beamforming Technology
Broader and more focused coverage
Adopts advanced Beamforming technology
Automatically detects the location of terminals from home
Enhances the signal in your location
Enables wider Wi-Fi coverage and more focused signals

Rigorous Testing
Pursuit of Quality
Cooperate with Octoscope, Spirent, Ixia and other international authoritative test
instrument manufacturers
Simulate various home actual scenarios and extreme links
Ensure that the router operates stably under different conditions and environments

Specifications and parameters
Hardware
Fixed port: Four 10/100/1000Base-T Ethernet ports Independent reset key, function keys (Mesh, wireless optimization)
Wireless: 6 external high gain omnidirectional antennas (2.4 GHz & 5 GHz 5dBi)
CPU: Dual-core 1.0 GHz
Indicator: Front LED: system status indicator
Rear LED: 1 WAN port status indicator
Dimensions (W D H): 286mm x 87mm x 234mm
Power supply: 12V 2A
Cooling method: Natural cooling

Wireless
Wireless protocol
2.4 GHz: 802.11ax/n/g/b
5 GHz: 802.11ax/ac/n/a

Spatial flow
2.4 GHz 2x2 MIMO
5 GHz 4x4 MIMO

Wireless bandwidth
2.4G HT20/HT40
5G HT20/HT40/HT80/HT160

Wireless rate
Dual-frequency concurrency 5,378 Mbps
2.4 GHz: 574 Mbps & 5 GHz: 4,804 Mbps

Wireless roaming
Support IEEE 802.11k/v

MU-MIMO
Upstream and downstream MU-MIMO

Software
Internet connection:
Routing mode: DHCP/PPPoE/Static IP
Bridge mode: wired relay/wireless relay

EasyMesh: Support
IPv6: Support

Security features
WPA3 encryption
Anti-Wi-Fi squatting/anti-attack
Firewall, DMZ, DoS attacks

Network management
Guest Wi-Fi, access allowlist/denylist, parental controls based on multiple periods, IP-based traffic control, Wi-Fi timing switch

Features
Qos traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP, DynDNS), VPN(PPTP Client,L2TP Client)

Management method
Support for H3C Magic APP (iOS, Android), Web

Fault diagnosis
Link detection
Internet diagnosis

Operating Environment
Operating temperature: 0 C-40 C
Storage humidity: 10%-90%, RH non-condensing

What's in the box
1 x Integrated machine
1 x Quick Start Guide
1 x Power Adapter
1 x Networking cable: Cat 5e cable
