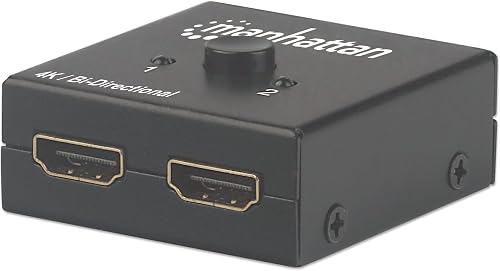

HDMI 2.0 Bi-Directional Switch 1x2/2x1 Compatible with 4K HDTV 3D

Description:
Two-way intelligent switcher, which can assign one HDMI port to two high-definition audio and video distributors of HDMI port, or can input from two HDMI ports, one HDMI port outputs high-definition audio and video switcher, just through the button on the product,

It is easy to switch between the switch and the splitter. It can distribute HDMI signals from HDTV set-top boxes, DVD players, D-VHS projectors and other HDTV devices to two consistent, synchronized HDMI signal outputs. The single signal output by the user can be connected to audio and video equipment such as high definition projectors, DLPs, and LCD high definition televisions. The HDMI switch can display 3D output with vertical pixels up to 1080 lines, and supports 3D devices such as Blu-ray and PS3. Make the exciting 3D world at your fingertips.

HDMI two-way intelligent switcher Application:
Digital LED TV / Cloud TV / Apple TV / Blu-ray player / network player / XBOX360 / digital set-top box / network set-top box and other devices with HDMI interface, you can use this HD converter to enjoy the perfect HD experience!

Features:
2 HDMI sources (DVD player or PS3), 1 HDMI display device or TV
1 HDMI source (DVD player or PS3), 2 HDMI display devices or TV
No external power supply, maximum operating current: 15mA
Fully compliant with HDMI Specifications V1.0, V1.1, V1.2, V1.3, V1.4, V2.0
Control: Manual Electronic Switch Selection
2 LED indicators, 3 HDMI connectors
LED: The corresponding indicator light (blue) at work
Easy installation and simple operation, support 3D signal
Use AWG26 HDMI standard cable, input transmission distance up to 5 meters, output transmission distance up to 5 meters

Specs:
HDMI version: HDMI 2.0 version
HDCP version: HDCP1.2 version
Supported HDMI resolution: 2160/1080P24fs/1080P/1080i/720P/576P/576i/480P/480i
Supported video color format: 24bit
Supported audio formats: LPCM7.1/Dolby-AC3/DTS/DSD
Data transmission speed: 5.1Gbps
Input video signal: 5.0Volts p-p
Input line support: <25Mhdmi AWG26
The output line distance: 40mCAT6
Support the output line: 25mAWG24or20mAWG26
The maximum operating current: 1500mA
Power adapter: no power
Power Adapter Specifications: Input: AC (50Hz, 60Hz) 100V~220V; Output: DC 5V

Package:
1x 1x2/2x1 HDMI Bi-directional Switch

Noted:
If the HDMI switcher does not work,please check your input device whether with external power,the use of the connection wire is consistent with the requirements of the standard wire.

What's in the box
1 x HDMI Bi-Directional Switch
